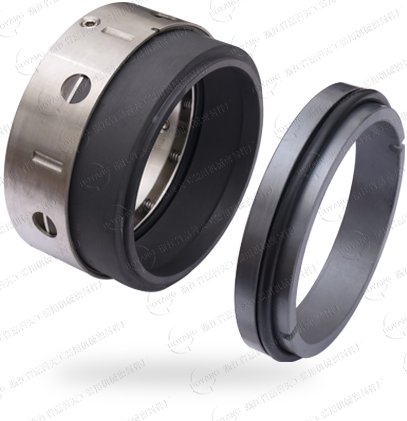

Introduction to 59B:

Single end face/balanced type/any direction of rotation/in accordance with EN12756 (DIN24960)

This series of seals are of multi-spring structure, the sealing surface is evenly pressed, easy to install, and has good versatility. It is widely used in oil, water, organic solvents and other corrosive media.

Operating parameters:

Specification: 14 ~ 100mm | Pressure: ≤6.0Mpa | Temperature: -20C~ 200C | Linear velocity: ≤20m/s | Axial movement: ±0.5mm

Material combination:

Sealing end face: graphite, silicon carbide, tungsten carbide, alumina

Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber, PTFE

Metal components: stainless steel, SUS304, SUS316L
